Model No.

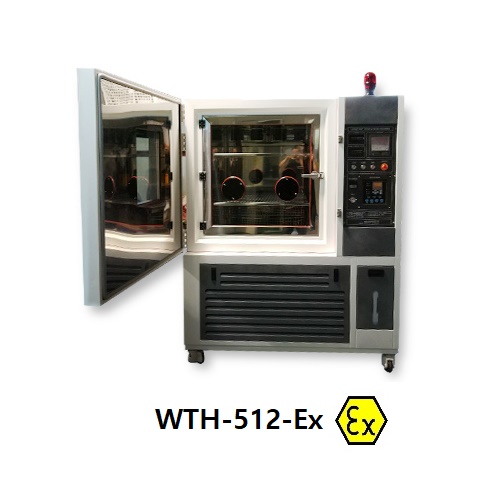

WTH-512

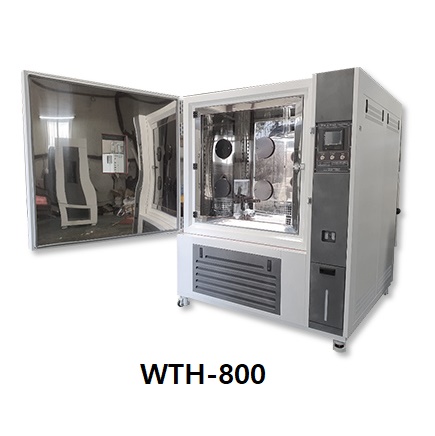

WTH-800

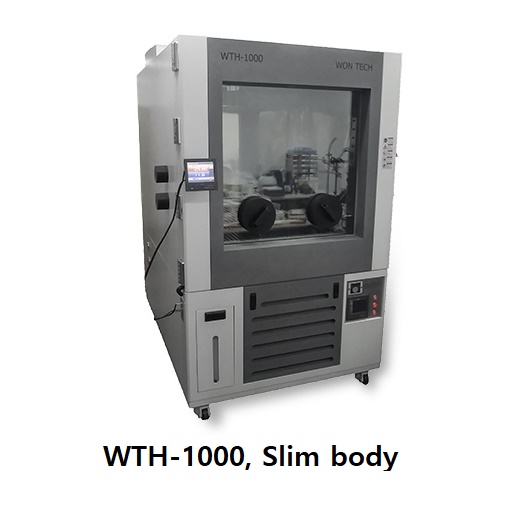

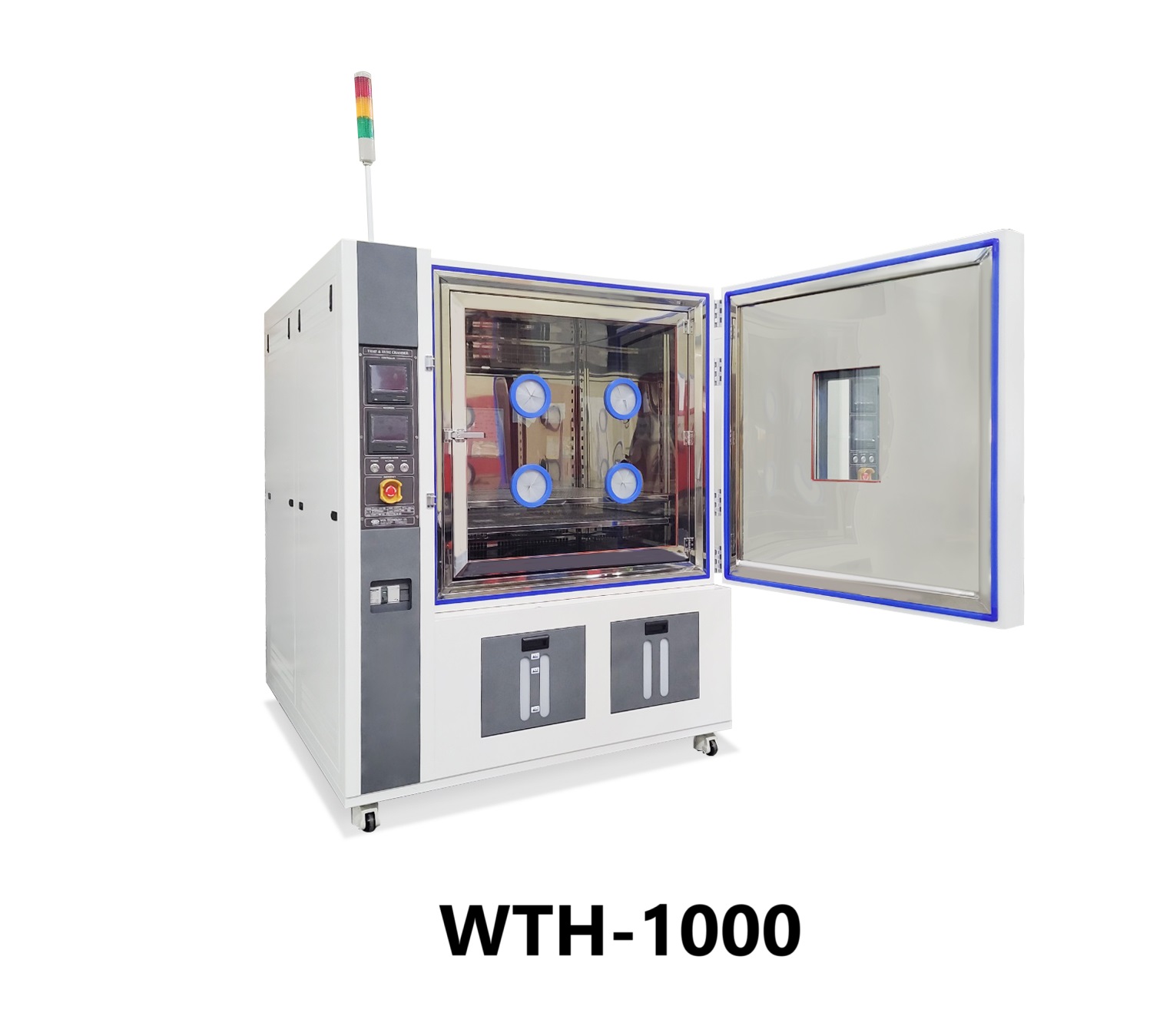

WTH-1000

Dimensions w*d*h/mm (In)

800 * 800 * 800

 1000 * 800 * 1000

1000 * 1000 * 1000

Temp. & Humidity controller

5.6” Touch screen programmable controller : 120 Patterns 1200 Segments, 999 cycle, SD 4 GB Memory, TEMI1500

*Range (Temp./Humidity)

-20℃ ∼ 150℃ / 30% ∼ 95%RH (Option : -40℃ ∼ 150℃ / -70℃ ∼ 180℃)

*Temp. change rate

Heating up & Cooling down : 1.0 K/min, Non-Linearity (Option : 2.0 K/min, 3.0 K/min, Non-Linearity)

*Temporal fluctuation

≤±0.5℃ ∼ ≤±1.5℃ / ≤±1.0% RH ∼ ≤±2.0% RH

*Spatial variation

≤±1.5℃ ∼ ≤±2.5℃

Refrigeration system

Air cooled type (Available water cooled type method)

Material (In)

18-8 Cr-Ni stainless steel plate (STS304, 2B)

(Out)

Steel plate (SCP-1) with powder coating finished (Option : STS304 H/L)

Door

Seamless forming silicone packing door with observation window (3 Fold vacuum glass - Hotwire attached, LED Lamp)

Water supply

Cartridge sliding type auto supplied water tank (20 L)

Utility

Access port Ø50mm (Available Ø100mm), Inner door & Hand-in ports Ø150mm

Safety device

Over temp. protector, Motor overload relay (EOCR), Electronic over current relay, Refrigerator overload relay,

 Refrigerator High/Low pressure switch, Water level monitor, Leakage breaker S/W, etc.

Power source

AC 380 V, 3 Phase, 50/60 Hz

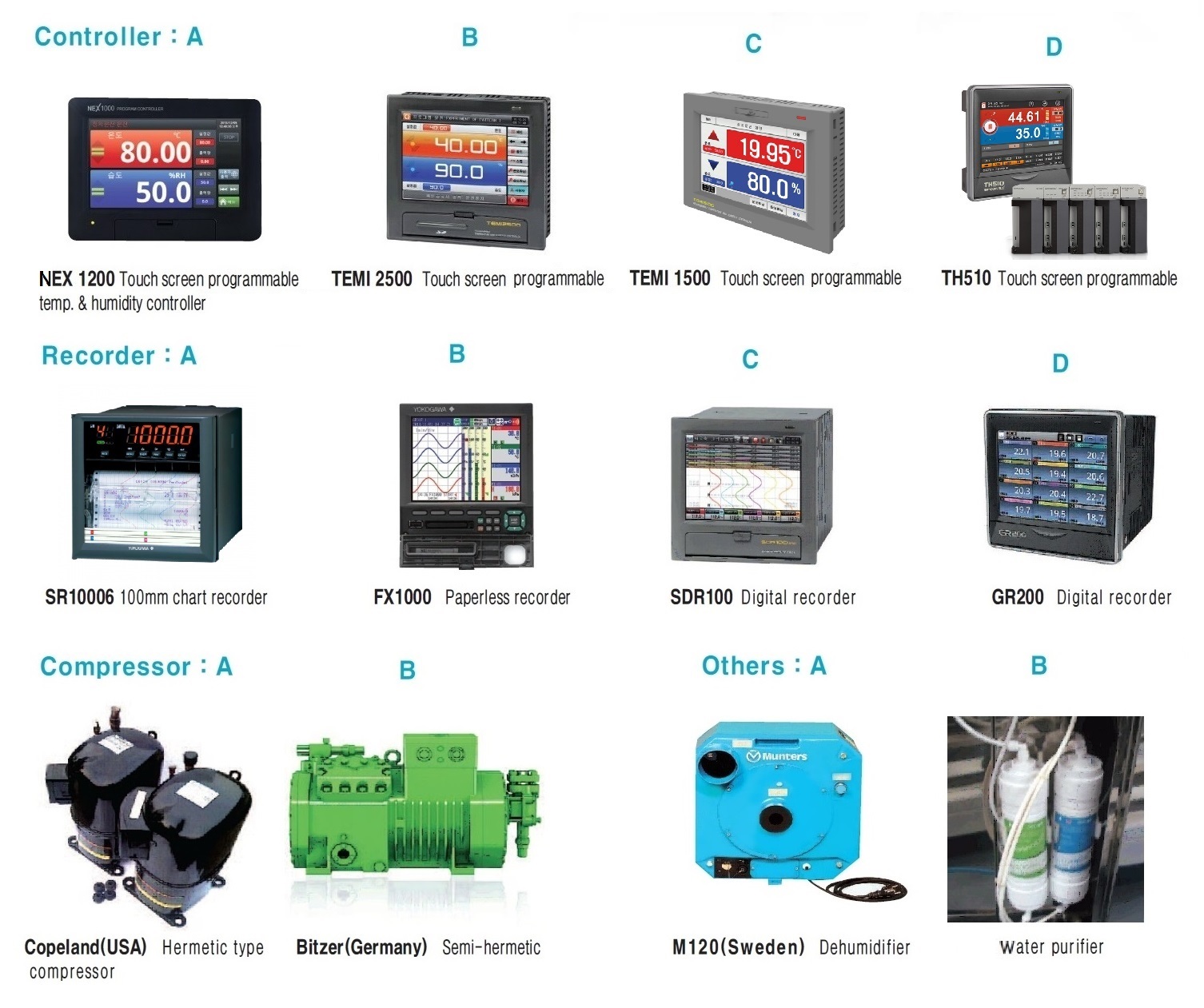

Optional Accessories

Temp. & Humidity controller

Touch screen programmable controller (TEMI2500, NEX1200, TH510), Embedded HMI Controller (FCS, Facility Control System)

Facility

De-humidifier (Munters M120), CO₂ Auto extinguisher, Water purifier, Door interlock device

Recorder

Chart type 2 channel (SR-10006) / Paperless type (SDR100, FX-1000, GR200)

MAS (Mobile alert system)

SNS, Voice call, Message : Ethernet network (RN171), WIFI (RN172), RN400 Series & RADIONODE365 Web, UA1X & Tapaculo for Android

* Accordance with IEC60068-3-5 & IEC60068-3-6
