Model No.

WTS2-27

WTS2-64

WTS2-125

Type

Air to air / Hot & Cool 2 Zone (Elevating type)

Basket size : w*d*h/mm

300 * 300 * 300

400 * 400 * 400

 500 * 500 * 500

Temp. controller

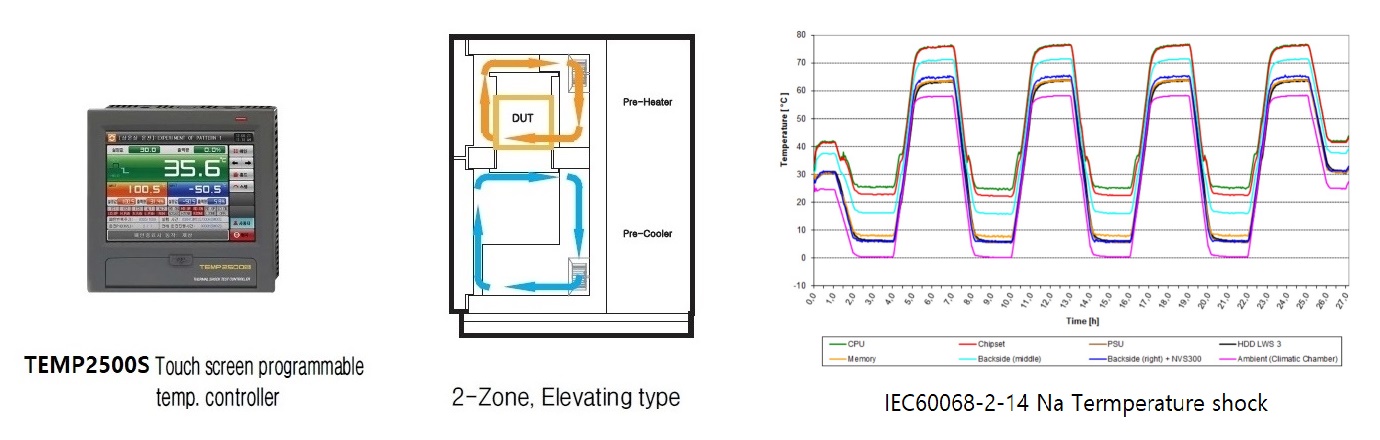

5.7” Touch screen programmable controller : 120 Patterns 1200 Segments, SD 4 GB Memory, TEMP2500S

*Temp. Range

-50 ℃ ~ 180℃ (Cycle range -40 ℃ ~ 150℃) / Option : -70 ℃ ~ 180℃ (Cycle range -60 ℃ ~ 150℃)

*Time

Transfer : ≤10 sec, Recovery : ≤10%*Soak time(≤0.1 t1), Dwell soak : 10 min.~ 3 hrs.

*Temporal fluctuation

≤±1.5℃ ∼ ≤±2.5℃

*Spatial variation

≤±2.0℃ ∼ ≤±3.5℃

Refrigeration system

Built-in Double sourced refrigeration system / Option : **Outdoor condensing unit or Water cooled type

Material (In)

18-8 Cr-Ni stainless steel plate (SUS304, 2B)

(Out)

 Steel plate (SCP-1) with powder coating finished

Door

Silicone packing door with observation window (3 Fold vacuum glass - Hotwire attached, LED Lamp)

Utility

Access port Ø50mm

Safety device

Over temp. protector, Motor overload relay (EOCR), Electronic over current relay, Refrigerator overload relay,

 Refrigerator High/Low pressure switch, Leakage breaker S/W, etc.

Power source

AC 380 V, 3 Phase, 50/60 Hz

Optional Accessories

Temp. controller

Embedded HMI Controller (FCS, Facility Control System)

Facility

Constant Temp. test zone, Door inter lock device, Air compressor, Low GWP refrigerants, CO₂ or N₂  Boost injector for recovery

Recorder

Chart type 2 channel (SR-10006) / Paperless type (SDR100, FX-1000, GR200)

MAS (Mobile alert system)

SNS, Voice call, Message : Ethernet network (RN171), WIFI (RN172), RN400 Series & RADIONODE365 Web, UA1X & Tapaculo for Android

*Accordance with IEC60068-3-5 & IEC60068-2-14Na

**The distance between the condensing unit and the equipment is within 15m
